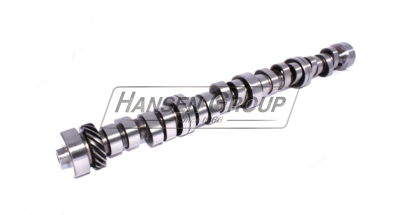

Arbre à cames
CompCams : 33-422-11
Nº d'article: COM33-422-11
* Hydraulic Roller * Basic Operating RPM Range 1,800-5,400 * Advertised Duration 270/276 * Valve Lift 0.521/0.521 * Ford 352-428 c.i. 8 Cylinder (1963-1977)
Great mid-range torque in performance street application, likes headers.
- Advertised Exhaust Duration: 276 DD
- Advertised Intake Duration: 270 DD
- Amazon ASIN: N/A
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,800-5,400 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam and Lifter Kit Upgrade: CL33-422-11
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: Xtreme Energy
- Engine Family: Ford 352-428 c.i. 8 Cylinder (1963-1977)
- Exhaust Duration at .050 inch Lift: 224 DD
- Exhaust Valve Lift: 0.521 IN
- Grind Number: XR270HR
- Intake Duration at .050 Inch Lift: 218 DD
- Intake Valve Lift: 0.521 IN
- K-Kit Upgrade: K33-422-11
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 110 DD
- Title: Xtreme Energy 218/224 Hydraulic Roller Cam for 352-428
- Usage: Street/Performance
- Valve Springs Required: Yes
- Make: Ford
- Block type: Big Block
- Engine Family: Ford 352-428 c.i. 8 Cylinder (1963-1977)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 1800 RPM From
- Operating RPM to: 5400 RPM To
- Duration intake: 270 Duration intake
- Lift intake: 521 Lift intake
- Lift exhaust: 521 Lift exhaust
