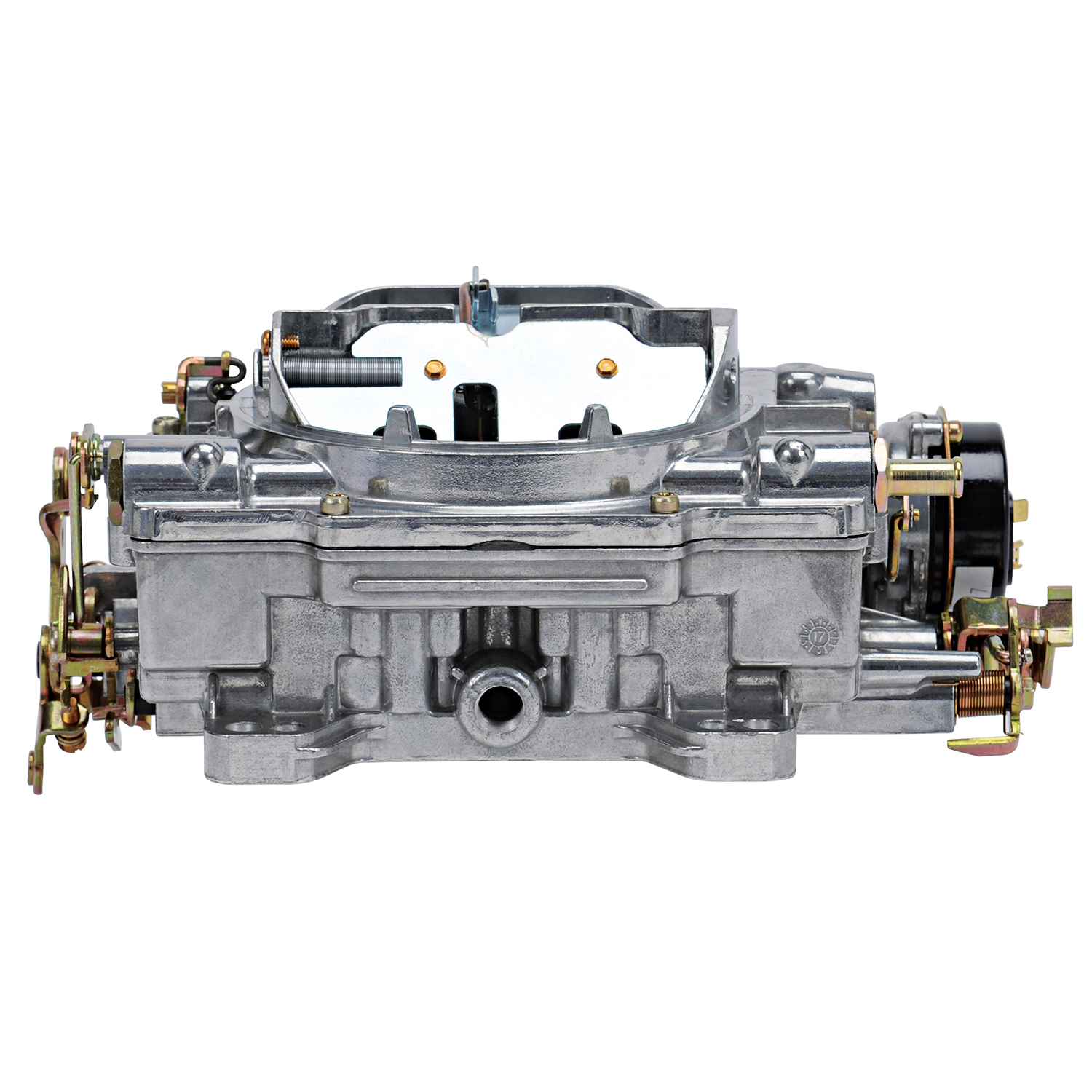

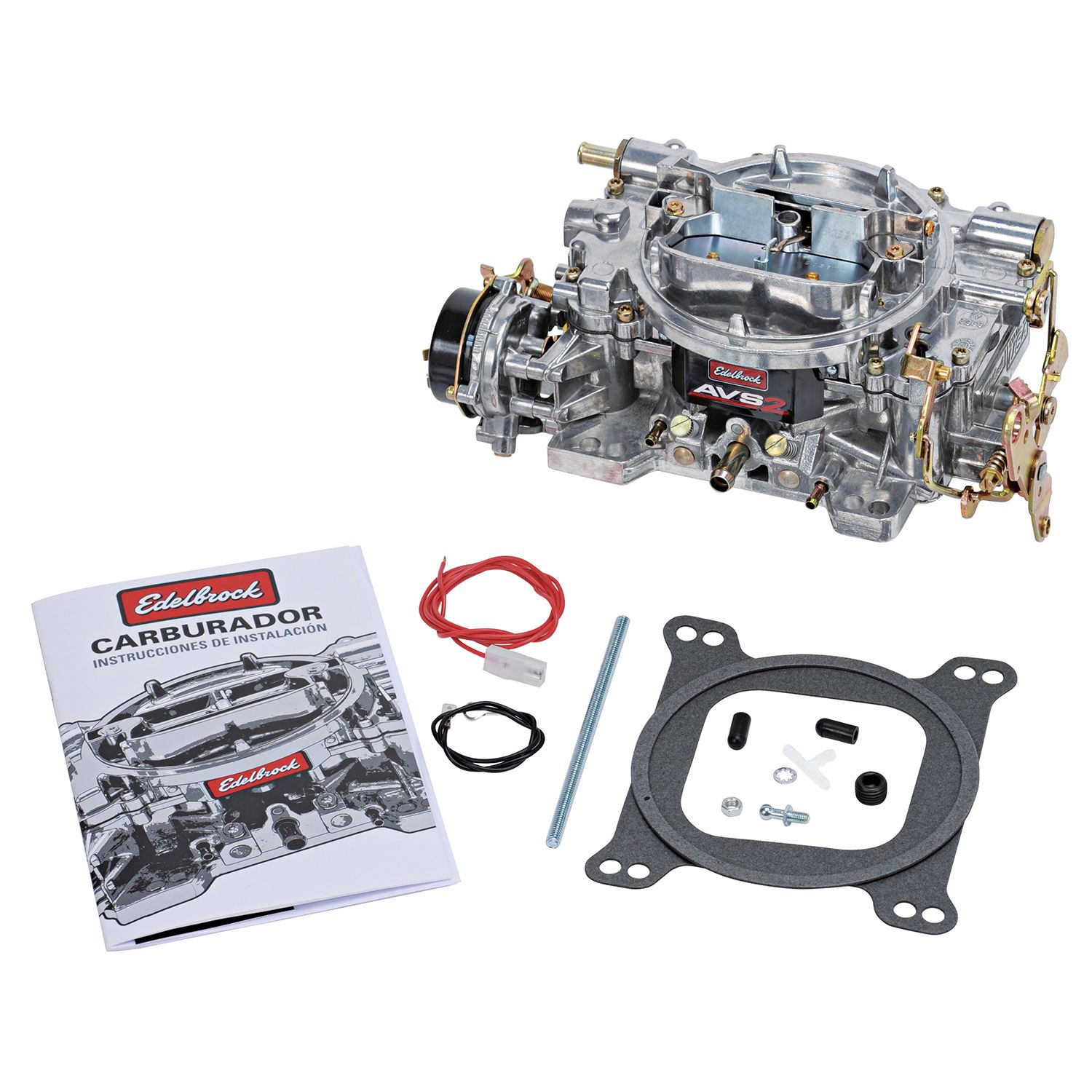

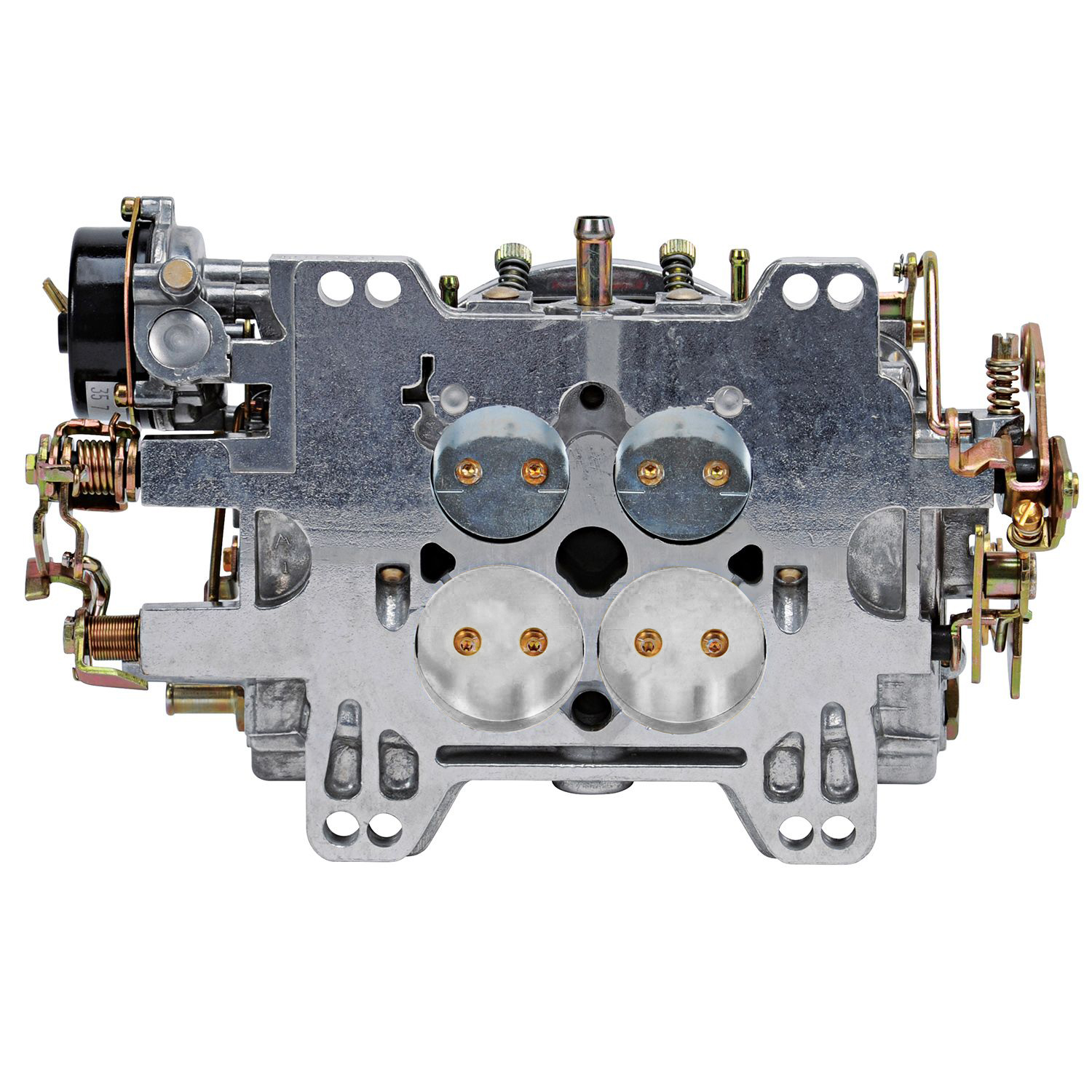

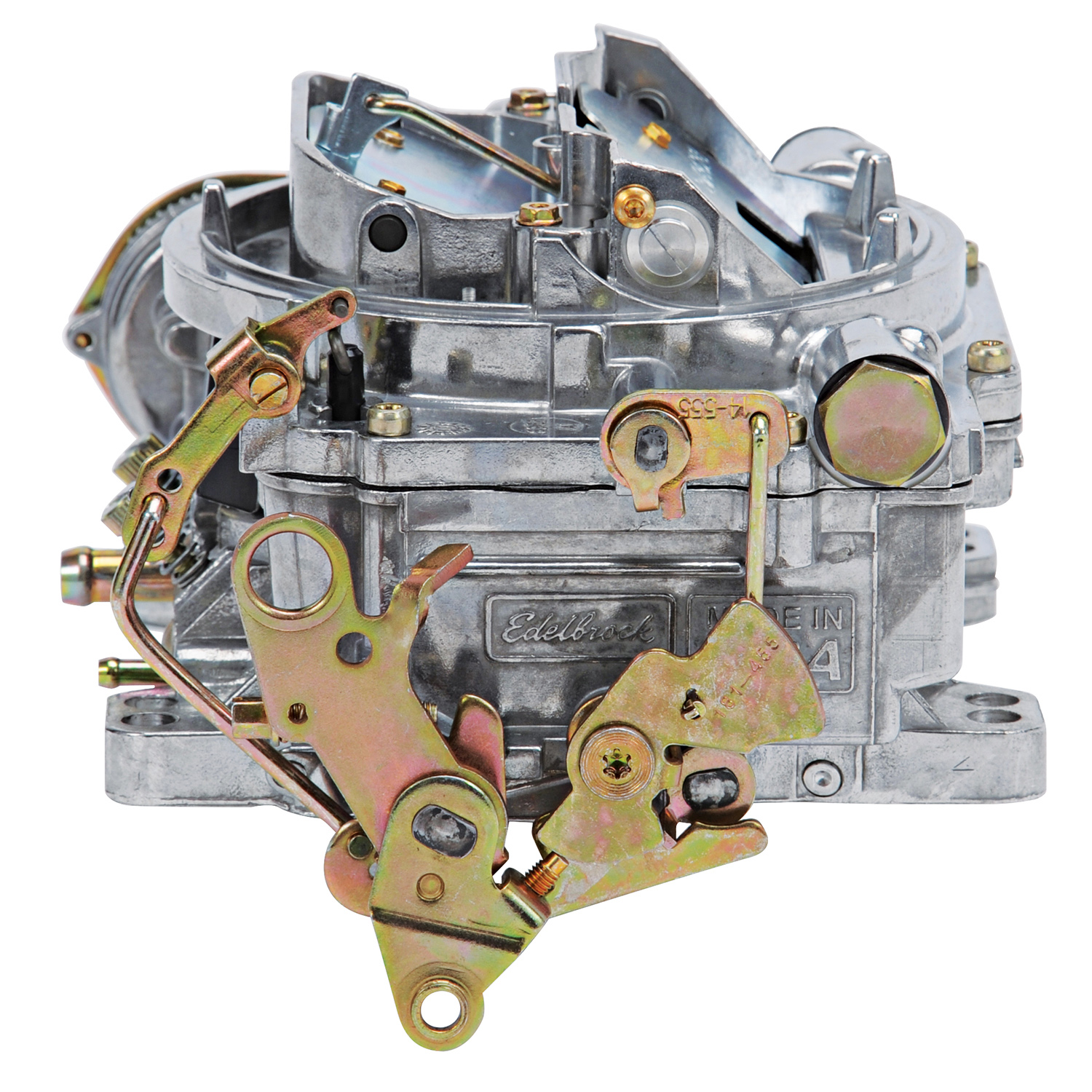

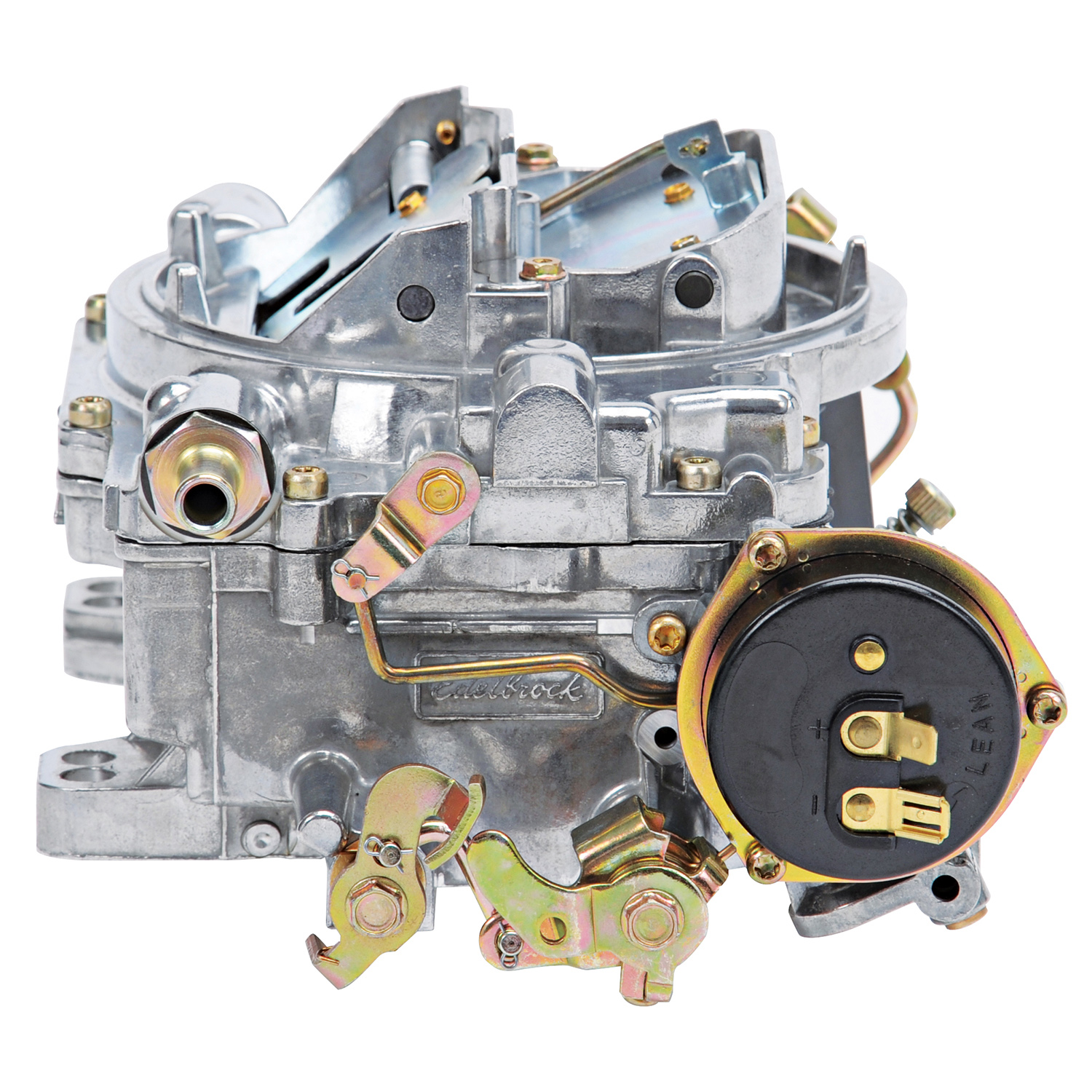

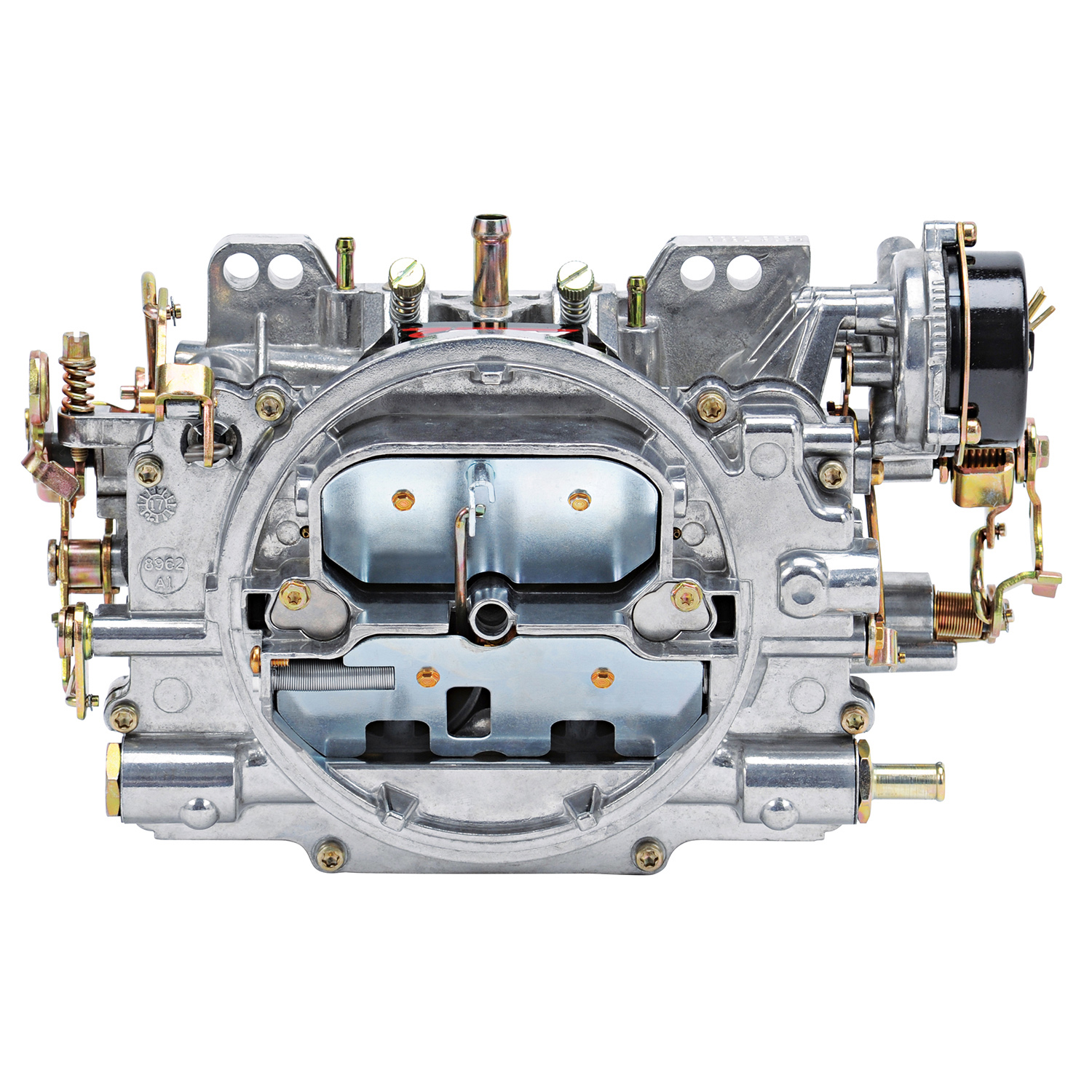

AVS2 Carburateur

Edelbrock : 1901

Nº d'article: EDE1901

Description

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.

Informations sur le produit du fournisseur

Barrel Quantity: 4 Barrel
Body Height: 3.25 IN
Booster Type: annular
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875 IN
Choke Type: Electric
Condition: New
EGR Port: No
Finish: Satin
Flange Shape: Square
Gasket or Seal Included: Yes
Main Venturi Diameter: 1.19 IN
Material: Aluminum
Maximum Flow Rating: 500 2L
Metering Rod Size: .070 x .052 IN
Primary Jet Diameter: 0.095 IN
Recommended Use: For Single Carb Applications
RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Secondary Jet Diameter: 0.095 IN
Series: AVS2
Spring Force: 5" Hg (Orange)
