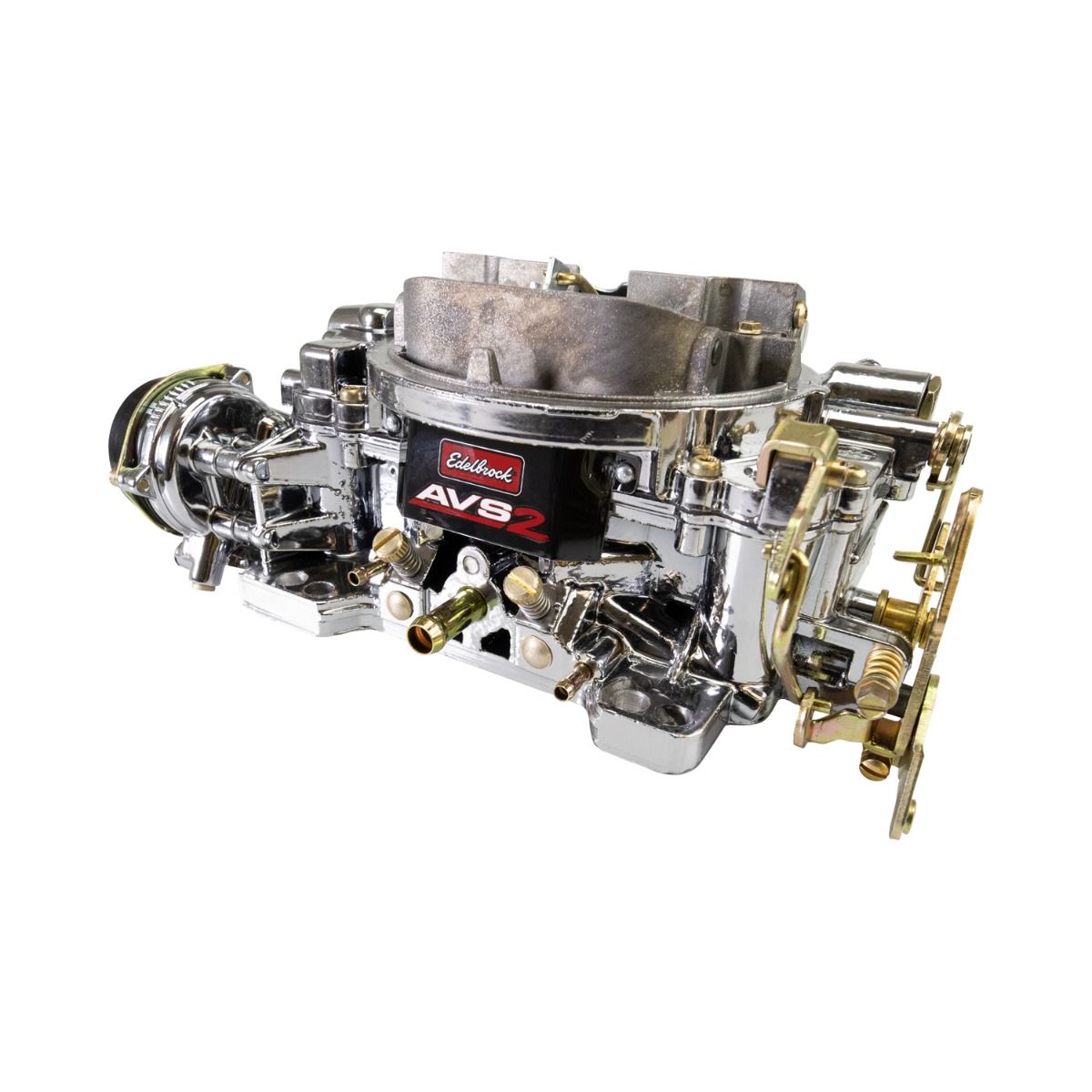

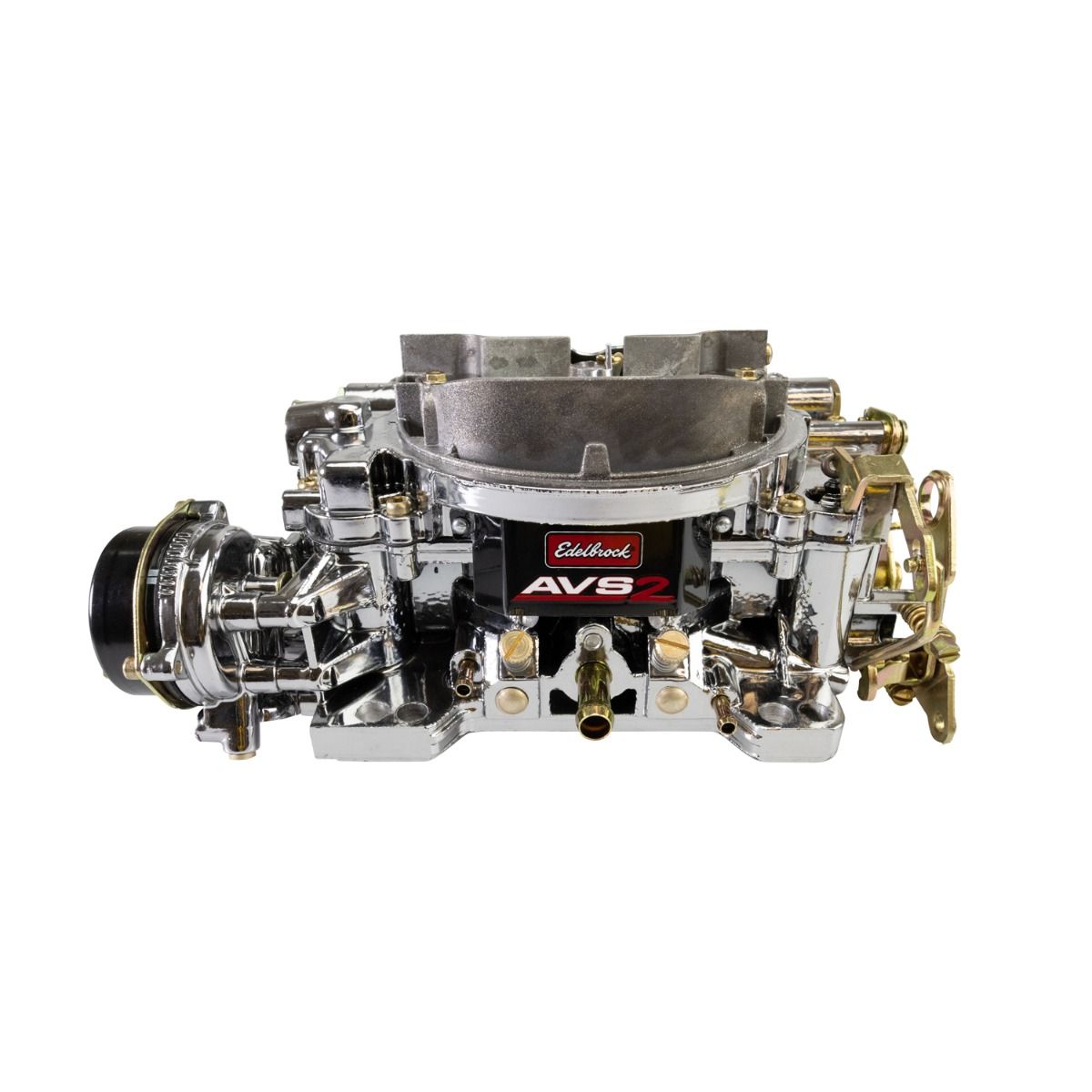

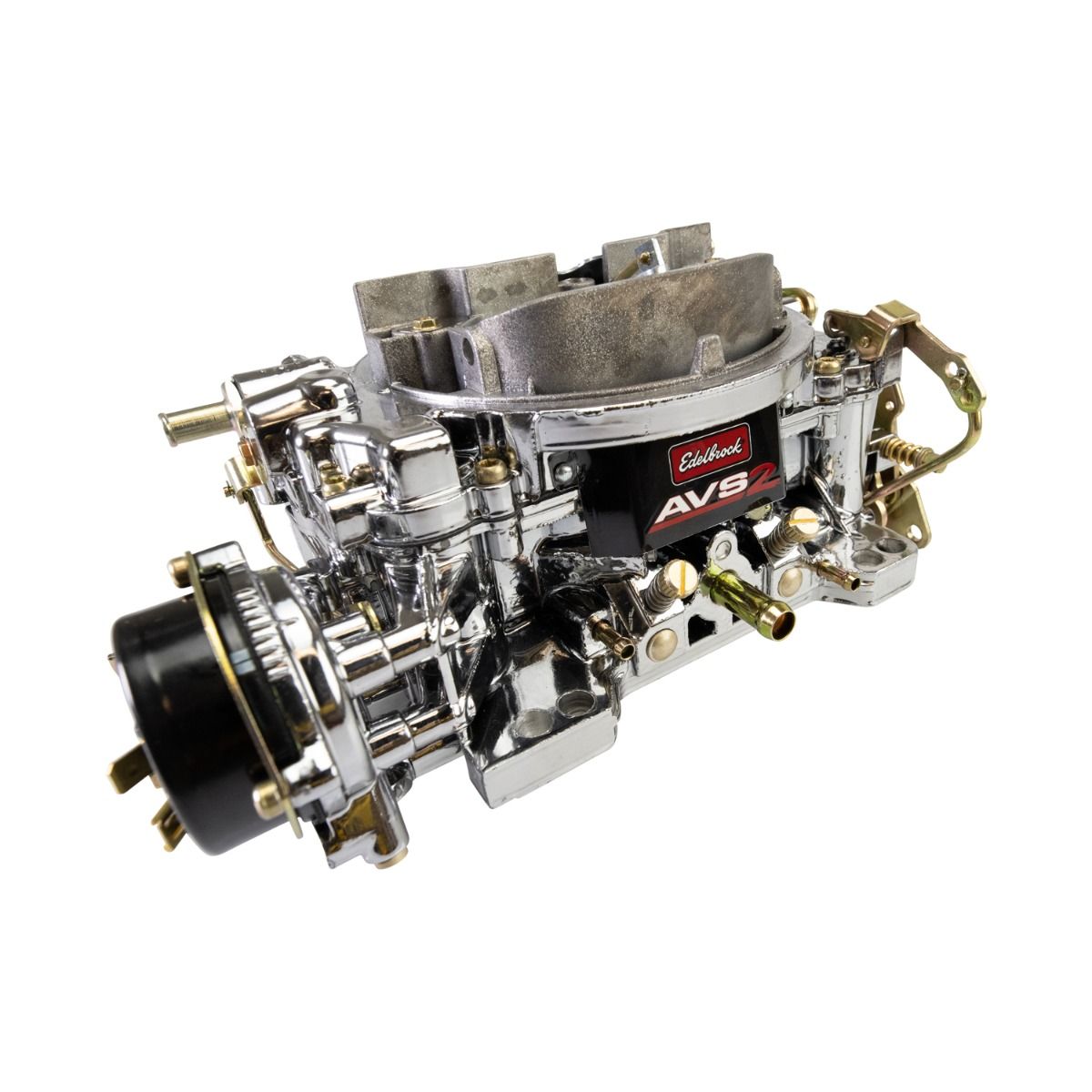

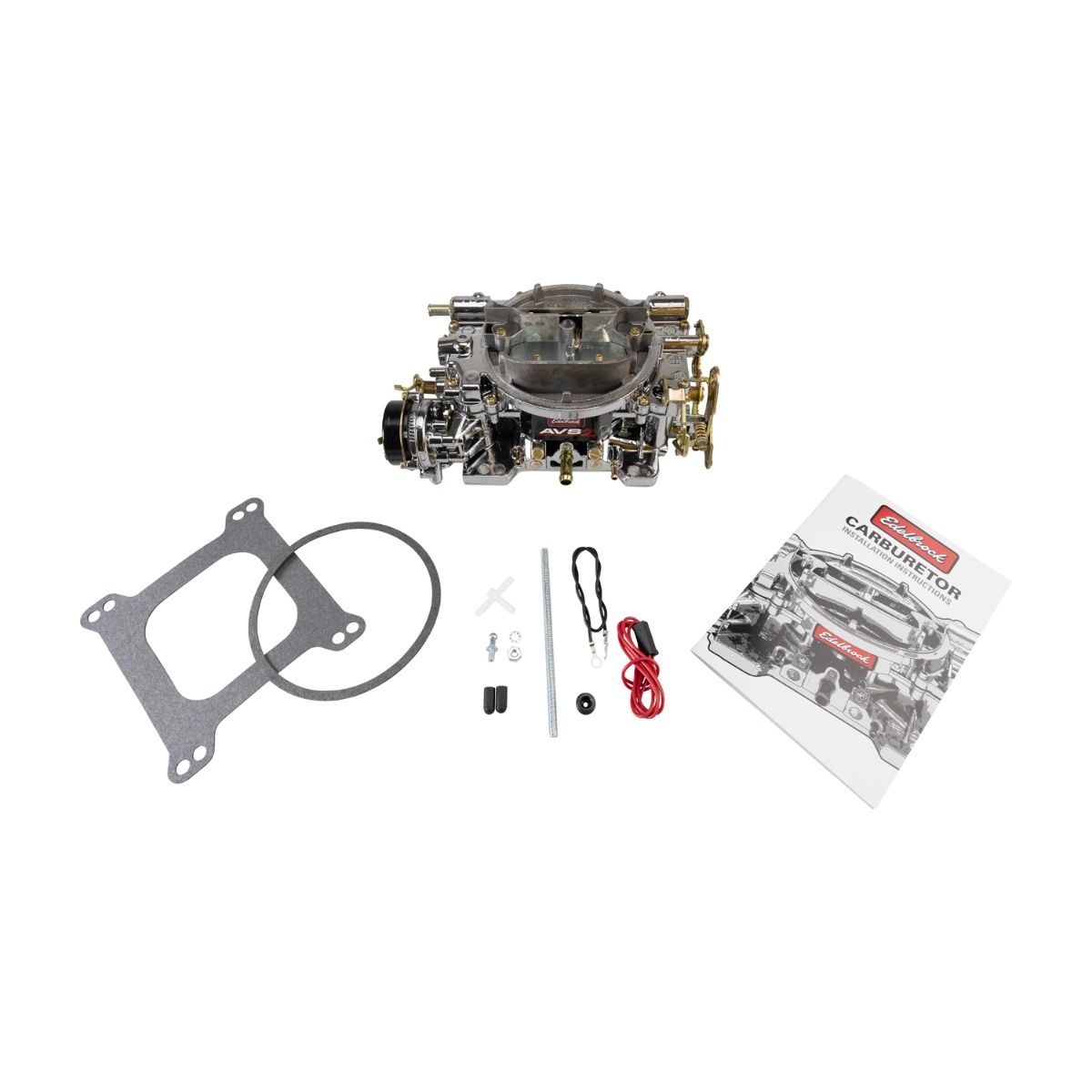

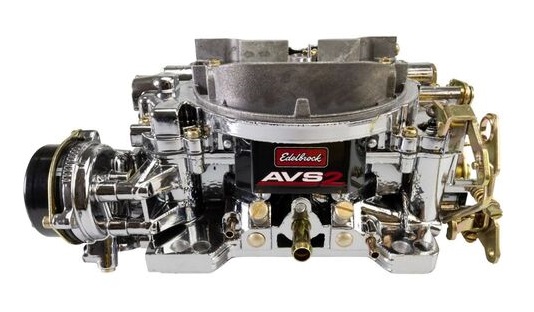

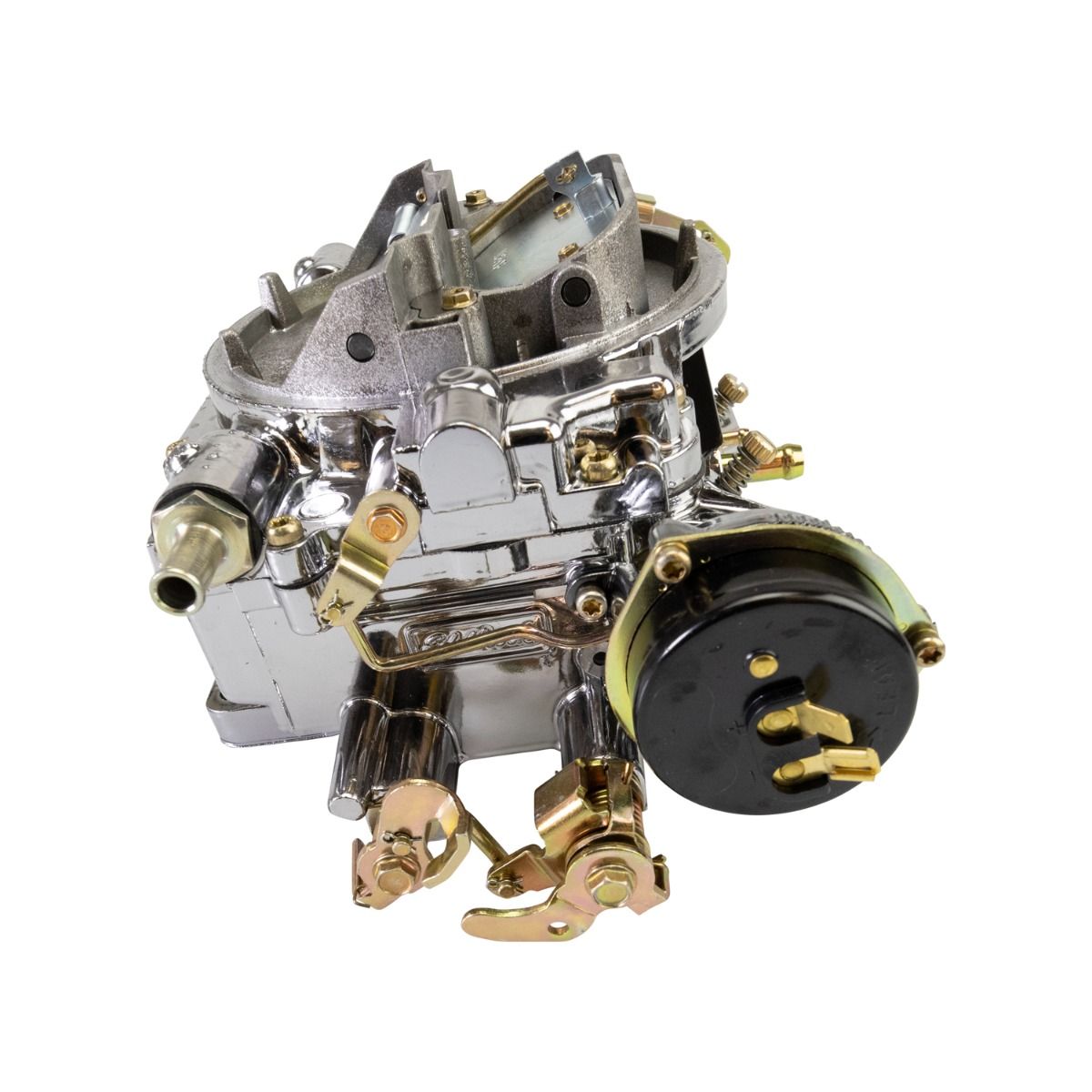

AVS2 Carburateur
Edelbrock : 1906-CP
Nº d'article: EDE1906-CP
Perf. Carburator Rochester Q-jet, Chevrolet, 80-89- Accel Pump Capacity: Adjustable - 25cc/31cc/39cc
- Adjustable Float Level: Yes
- Air Cleaner Flange Diameter: 5.09 IN
- Barrel Quantity: 4
- Base Length: 5.62 IN
- Base Width: 5.16 IN
- Body Height: 3.25 IN
- Booster Type: Annular
- Bore Diameter: Primary Bore 1.44; Secondary Bore 1.75 IN
- Choke Type: Electric
- Condition: New
- EGR Port: No
- Finish: Chrome Plasma
- Flange Shape: Square
- Float Level: 45123 IN
- Float Material: Brass
- Fuel Compatibility: Gas
- Gasket Or Seal Included: Yes
- Inlet Fitting Thread Diameter: 5/8" -20
- Main Venturi Diameter: 1.19 IN
- Marine Approved: No
- Material: Aluminum
- Maximum Flow Rating: 650 2L
- Metering Rod Size: .070 x .037 IN
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Primary Jet Diameter: 0.101 IN
- RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Secondary Jet Diameter: 0.098 IN
- Series: AVS2
- Small Venturi Diameter: 1.63 IN
- Spring Force: 5" Hg (Orange)
- Throttle Linkage Type: Universal
- Universal Or Specific Fit: Universal
