Full Length Headers
Hedman : HED28156
Nº d'article: HED28156
* Handcrafted, Mild Steel Construction. * Long Tube Header Design Provides Excellent Top-End Horsepower and Torque. * Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors * Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters) * Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating! * Proud To Say, Made In The USA, Since 1954!

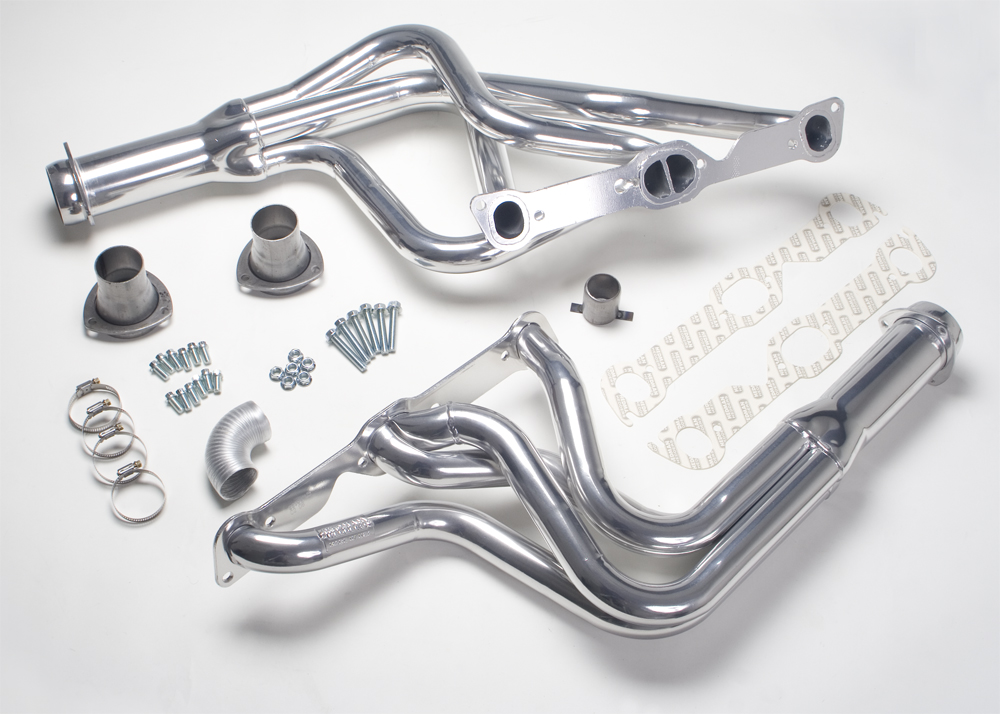

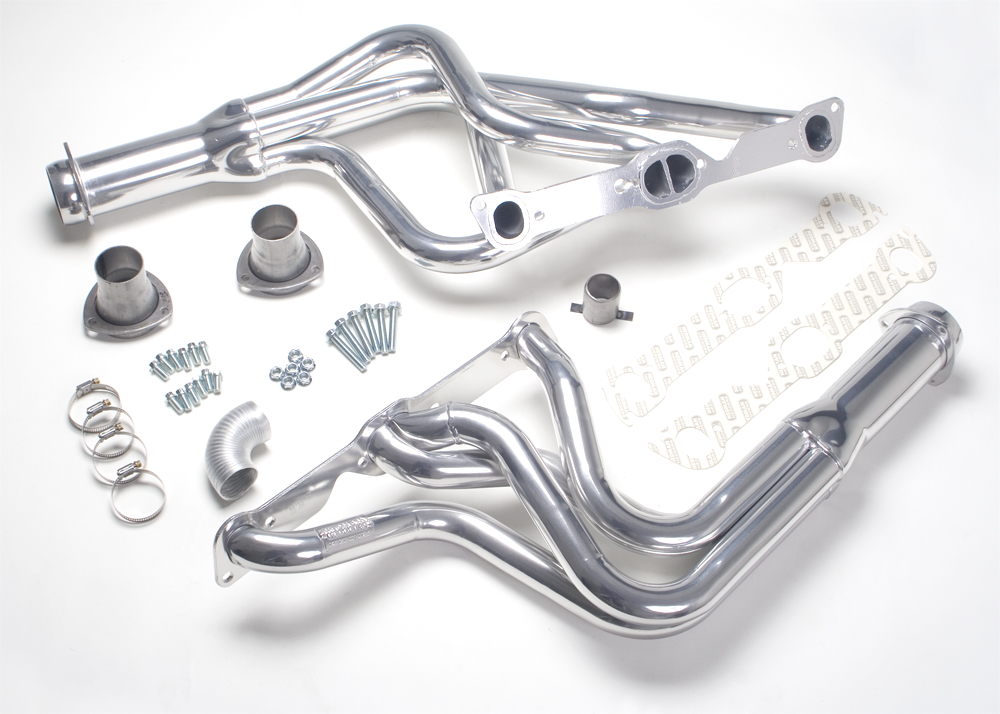

HTC Coated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design
- Air Conditioning: Yes
- Automatic Transmission - Column: No
- Automatic Transmission - Floor: Yes
- Bolts/Studs Included: Yes
- Catalytic Converter(s) Included: No
- Collector Attachment: 3 in.
- Collector Diameter: 3 in.
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
- Crossover Pipe Included: No
- Cylinder Head: Stock Profile Heads
- Cylinder Head Port Shape: Oval
- E.O. #: Yes
- Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
- Exhaust System Dia: 2-1/2 in.
- Finish: HTC Polished Silver Ceramic-Metallic
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Flange Style: Standard
- Flange Thickness: 0.3125 in.
- Gasket or Seal Included: Yes
- Header Construction: MILD STEEL- Standard-Duty
- Header Fasteners Included: Yes
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Header Style: Long Tube
- Installation Hardware Included: Yes
- Manual Transmission - Column: Yes
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Motor Mounts Included: No
- Mounting Hardware Included: Yes
- Notes: 70-81 Trans-Am 326-455
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Power Steering: Yes
- Primary Tube Diameter (in): 1.75 in.
- Primary Tube Gauge: 16g
- Quantity: Sold as a pair.
- Reducer Outlet Size: 2-1/2 in.
- Reducers Included: Yes
- Replacement Gasket: 27600
- Replacement Head Flange Gasket: 27600
- Title: HEDMAN HEDDERS HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
- Tube Design: Standard
- Tube Diameter: 1-3/4 in.
- Tube Length: Long Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-3/4 in.
- Tube Style: Long Tubes
- Tuned: No
- Variations: 28150
- Weld-Up: No
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
