Lift Kit
Rough Country : 10270
Nº d'article: RCS10270

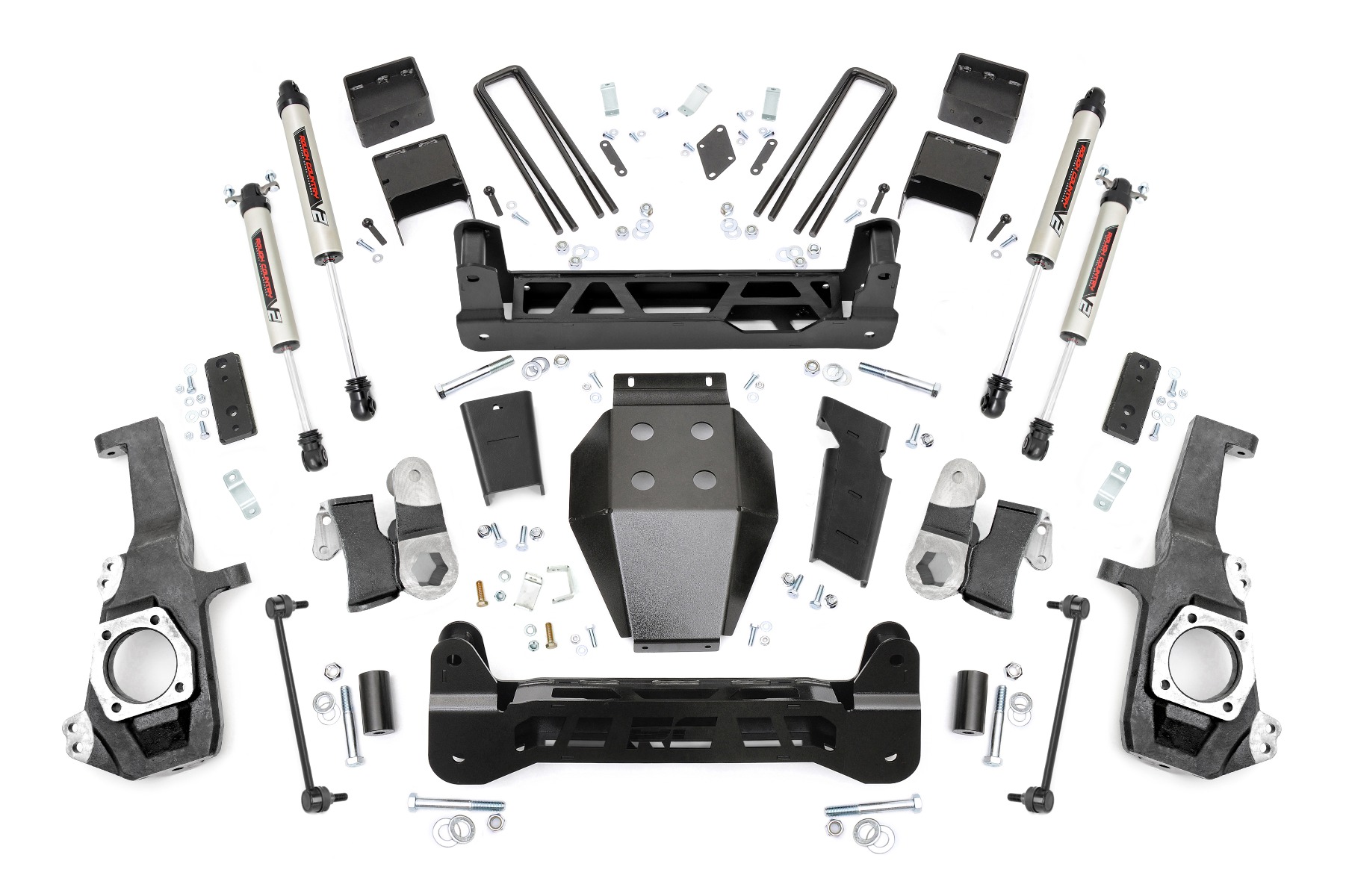

- Front Components: Lifted knuckles, Front crossmember, Rear crossmember, Differential drop brackets, Differential skid plate, Non-torsion bar drop brackets, Sway-bar links, Sway-bar brackets, Upper shock brackets, Brake line relocation bracket, Hardware
- Install Time: 8 - 10 hours
- Rear Components: Lift blocks, U-bolts, Bump-stop brackets, Brake line brackets, E-brake line bracket, Hardware
- Tire, Wheel, and Offset Info: 35x12.50R20:20x9:8x180:-12:-; 295/60R20:20x9:8x180:-12:-; 35x12.50R20:20x9:8x180:+0:-; 295/60R20:20x9:8x180:+0:-; 35x12.50R20:20x9:8x180:+1:-; 295/60R20:20x9:8x180:+1:-; 35x12.50R20:20x10:8x180:-19:Minor Trimming; 295/60R20:20x10:8x180:-19:-; 35x12.50R20:20x10:8x180:-18:Minor Trimming; 295/60R20:20x10:8x180:-18:-; 35x12.50R20:20x12:8x180:-44:Trimming Required; 35x12.50R22:22x10:8x180:-19:-; 295/50R22:22x10:8x180:-19:Minor Trimming; 295/50R22:22x10:8x180:-18:Minor Trimming; 35x12.50R22:22x12:8x180:-44:Trimming Required; Does NOT fit factory wheels
- Title: 5 Inch Lift Kit - NTD - V2 - Chevy/GMC 2500HD (20-23)
- Height Inch: 5 Inch
