Rapport de démultiplication
Motive Gear : D44-373HD
Nº d'article: MTGD44-373HD

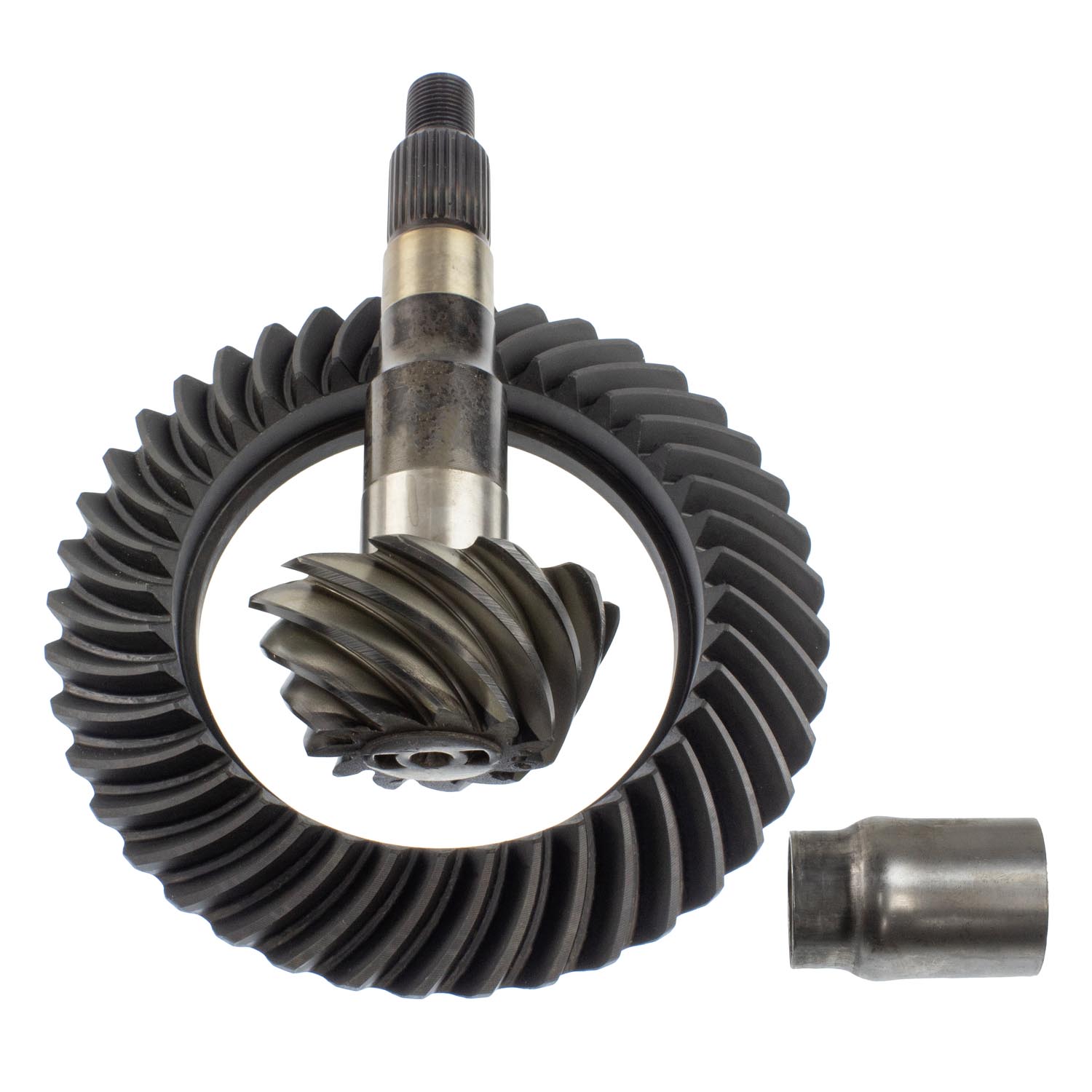

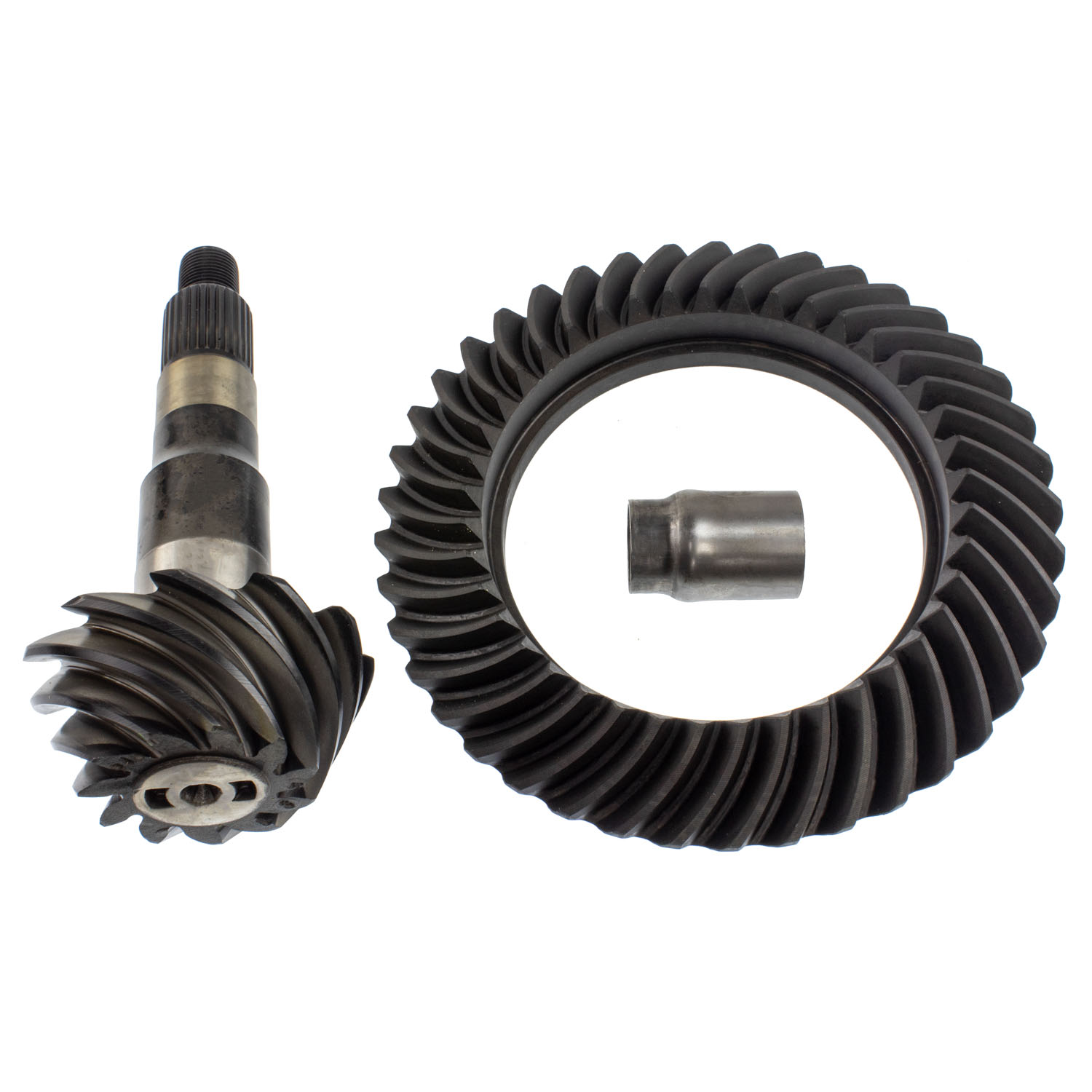

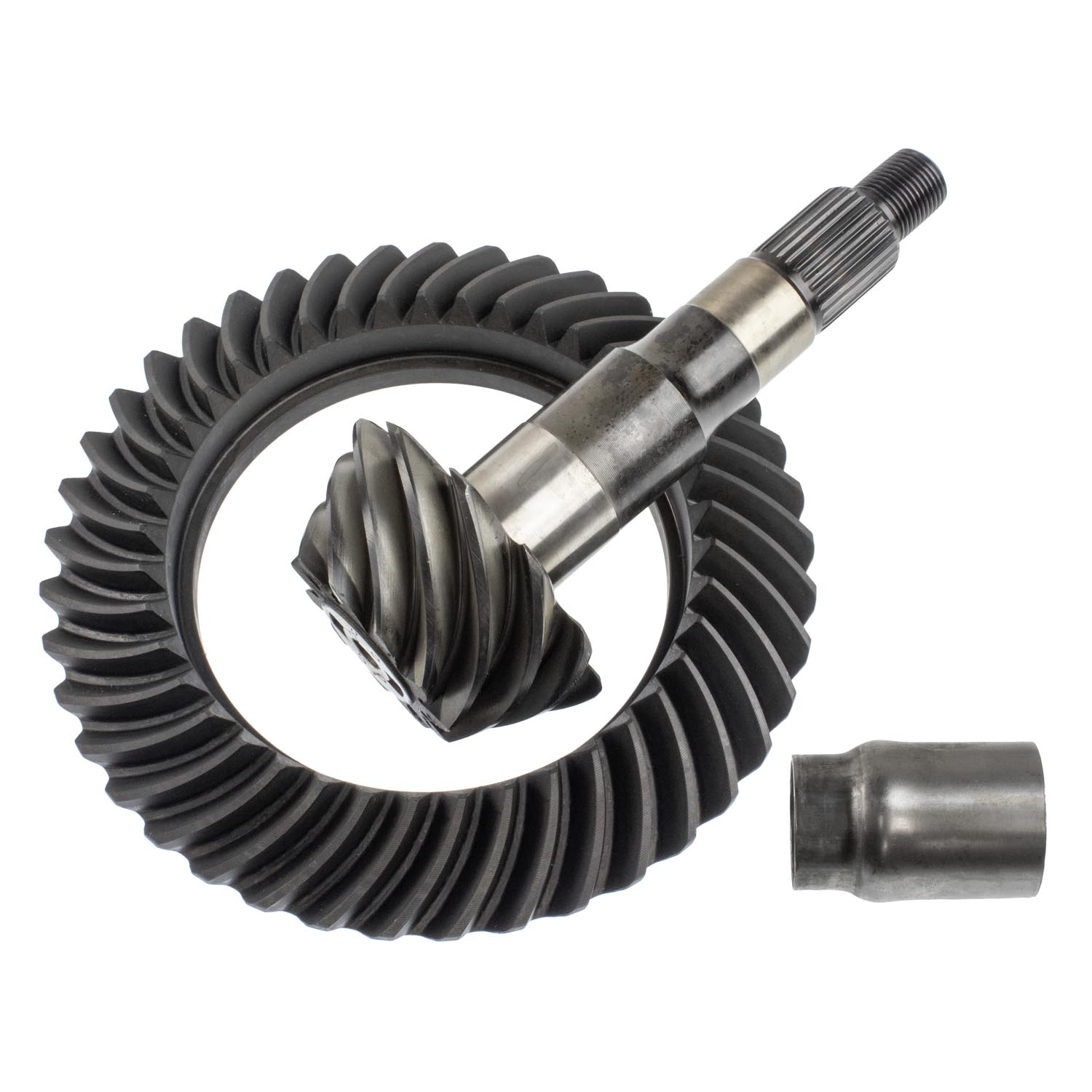

Motive Gear - Differential Ring and Pinion
- Cover Bolt Quantity: 10
- Differential Carrier Break: 3.73 Ratio and Lower
- Differential Case Design Type: Dana 44 HD
- Differential Case Design Type: Dana 44 ICA
- Gear Ratio: 3.73
- Pinion Gear Tooth Quantity: 11
- Pinion Shaft Diameter: 1.625 IN
- Pinion Spline Count: 29
- Ring Gear Bolt Quantity: 10
- Ring Gear Material: 8620 Steel
- Ring Gear Outside Diameter: 8.89 IN
- Ring Gear Rotation: Standard
- Ring Gear Tooth Quantity: 41
- 707381-4X: Spicer
- 76542-5X: Spicer
